Specifications |
|||
|---|---|---|---|

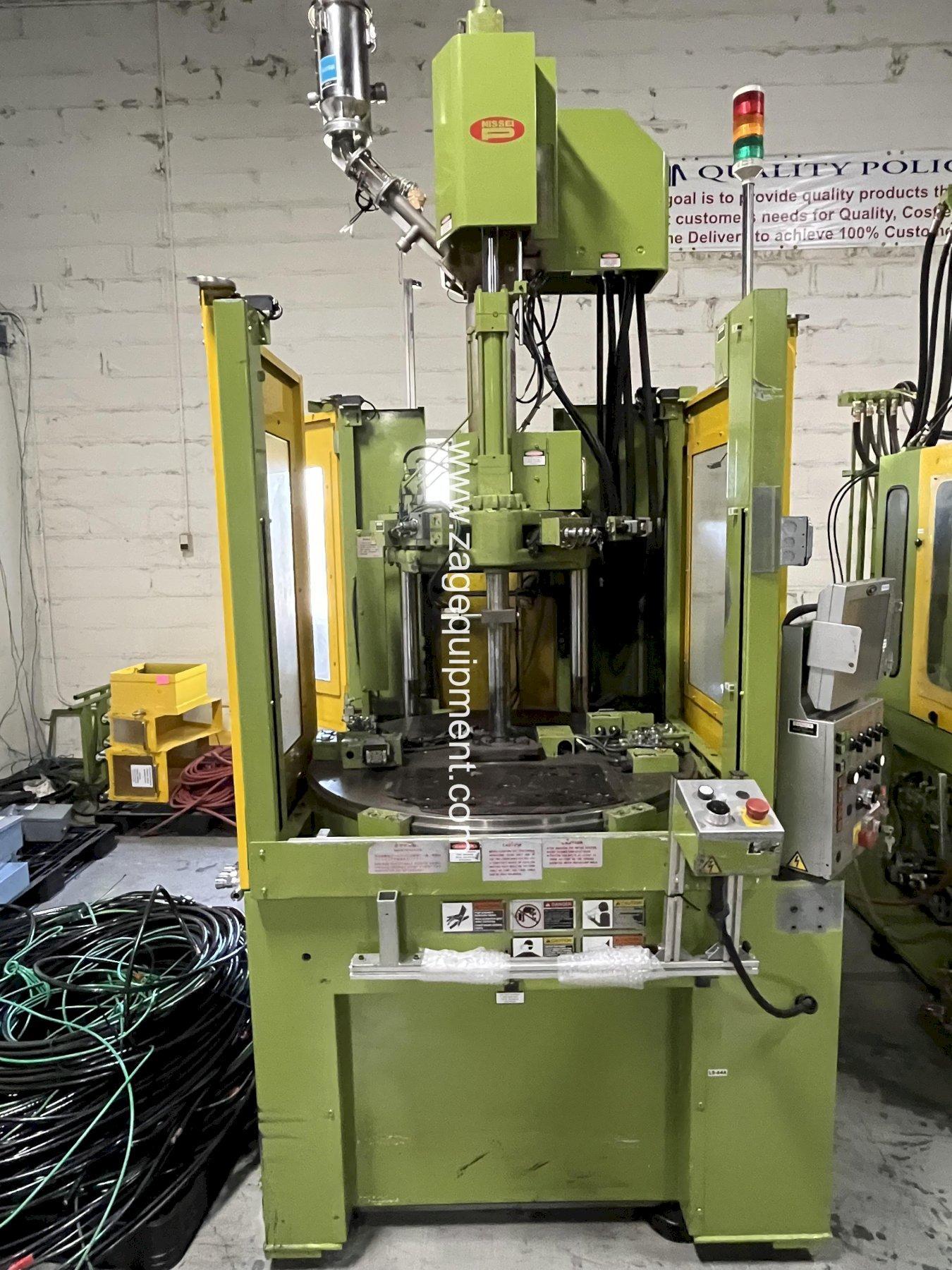

| Manufacturer | Nissei | ||
| Year | 2010 | ||
| Model | TNX50R5V | ||
| Shot Size | 1.66 oz. | ||
| Clamping Force | 53 US Ton | ||
Screw diameter: 26mm
Shot size: 1.66 oz.
Screw stroke: 3.6"
Clamp stroke: 9.84"
Min mold thickness: 9.4" / 240mm
Daylight opening: 19.3" / 490mm
Platen size: 21.7" x 15.7"
Ejector stroke: 1.97"
Rotary table
Machine dimensions: 8.7' x 5.2' x 9.6'
Weight: 7,600 lbs. |
|||
